Chapter 5: Classification of Land Cover¶
Introduction¶
In this chapter we will classify the Sentinel-2 image we've been working with using a supervised classification approach which incorporates the training data we worked with in chapter 4. Specifically, we will be using Naive Bayes. Naive Bayes predicts the probabilities that a data point belongs to a particular class and the class with the highest probability is considered as the most likely class. The way they get these probabilities is by using Bayes’ Theorem, which describes the probability of a feature, based on prior knowledge of conditions that might be related to that feature. Naive Bayes is quite fast when compared to some other machine learning approaches (e.g., SVM can be quite computationally intensive). This isn't to say that it is the best per se; rather it is a great first step into the world of machine learning for classification and regression.
scikit-learn¶
In this chapter we will be using the Naive Bayes implementation provided by the scikit-learn library. scikit-learn is an amazing machine learning library that provides easy and consistent interfaces to many of the most popular machine learning algorithms. It is built on top of the pre-existing scientific Python libraries, including numpy, scipy, and matplotlib, which makes it very easy to incorporate into your workflow. The number of available methods for accomplishing any task contained within the library is (in my opinion) its real strength. No single algorithm is best for all tasks under all circumstances, and scikit-learn helps you understand this by abstracting the details of each algorithm to simple consistent interfaces. For example:
This figure shows the classification predictions and the decision surfaces produced for three classification problems using 9 different classifiers. What is even more impressive is that all of this took only about 110 lines of code, including comments!
import rasterio
from rasterio.mask import mask
import geopandas as gpd
import numpy as np
from shapely.geometry import mapping
Now we need to collect all the Sentinal-2 bands because they come as individual images one per band.
import os # we need os to do some basic file operations
sentinal_fp = "../data/sentinel-2/"
# find every file in the sentinal_fp directory
sentinal_band_paths = [os.path.join(sentinal_fp, f) for f in os.listdir(sentinal_fp) if os.path.isfile(os.path.join(sentinal_fp, f))]
sentinal_band_paths.sort()
sentinal_band_paths
Now we need a rasterio dataset object containing all bands in order to use the mask() function and extract pixel values using geospatial polygons.
We'll do this by creating a new raster dataset and saving it for future uses.
# create a products directory within the data dir which won't be uploaded to Github
img_dir = '../data/products/'
# check to see if the dir it exists, if not, create it
if not os.path.exists(img_dir):
os.makedirs(img_dir)
# filepath for image we're writing out
img_fp = img_dir + 'sentinel_bands.tif'
# Read metadata of first file and assume all other bands are the same
with rasterio.open(sentinal_band_paths[0]) as src0:
meta = src0.meta
# Update metadata to reflect the number of layers
meta.update(count = len(sentinal_band_paths))
# Read each layer and write it to stack
with rasterio.open(img_fp, 'w', **meta) as dst:
for id, layer in enumerate(sentinal_band_paths, start=1):
with rasterio.open(layer) as src1:
dst.write_band(id, src1.read(1))
Okay we've successfully written it out now let's open it back up and make sure it meets our expectations:
full_dataset = rasterio.open(img_fp)
img_rows, img_cols = full_dataset.shape
img_bands = full_dataset.count
print(full_dataset.shape) # dimensions
print(full_dataset.count) # bands
Let's clip the image and take a look where we know the training data was from the last lesson (on the NC Rachel Carson Reserve) just to make sure it looks normal:
import matplotlib.pyplot as plt
from rasterio.plot import show
clipped_img = full_dataset.read([4,3,2])[:, 150:600, 250:1400]
print(clipped_img.shape)
fig, ax = plt.subplots(figsize=(10,7))
show(clipped_img[:, :, :], ax=ax, transform=full_dataset.transform) # add the transform arg to get it in lat long coords
Okay looks good! Our raster dataset is ready!
Now our goal is to get the pixels from the raster as outlined in each shapefile.¶
Our training data, the shapefile we've worked with, contains one main field we care about:
- a Classname field (String datatype)
Combined with the innate location information of polygons in a Shapefile, we have all that we need to use for pairing labels with the information in our raster.
However, in order to pair up our vector data with our raster pixels, we will need a way of co-aligning the datasets in space.
We'll do this using the rasterio mask function which takes in a dataset and a polygon and then outputs a numpy array with the pixels in the polygon.
Let's run through an example:
full_dataset.crs
Open up our shapefile and check its crs
shapefile = gpd.read_file('../data/rcr/rcr_landcover.shp')
shapefile.crs
Remember the projections don't match! Let's use some geopandas magic to reproject all our shapefiles to lat, long.
shapefile = shapefile.to_crs({'init': 'epsg:4326'})
shapefile.crs
len(shapefile)
Now we want to extract the geometry of each feature in the shapefile in GeoJSON format:
# this generates a list of shapely geometries
geoms = shapefile.geometry.values
# let's grab a single shapely geometry to check
geometry = geoms[0]
print(type(geometry))
print(geometry)
# transform to GeoJSON format
from shapely.geometry import mapping
feature = [mapping(geometry)] # can also do this using polygon.__geo_interface__
print(type(feature))
print(feature)
Now let's extract the raster values values within the polygon using the rasterio mask() function
out_image, out_transform = mask(full_dataset, feature, crop=True)
out_image.shape
Okay those looks like the right dimensions for our training data. 8 bands and 6x8 pixels seems reasonable given our earlier explorations.
We'll be doing a lot of memory intensive work so let's clean up and close this dataset.
full_dataset.close()
Building the Training Data for scikit-learn¶
Now let's do it for all features in the shapefile and create an array X that has all the pixels and an array y that has all the training labels.
X = np.array([], dtype=np.int8).reshape(0,8) # pixels for training
y = np.array([], dtype=np.string_) # labels for training
# extract the raster values within the polygon
with rasterio.open(img_fp) as src:
band_count = src.count
for index, geom in enumerate(geoms):
feature = [mapping(geom)]
# the mask function returns an array of the raster pixels within this feature
out_image, out_transform = mask(src, feature, crop=True)
# eliminate all the pixels with 0 values for all 8 bands - AKA not actually part of the shapefile
out_image_trimmed = out_image[:,~np.all(out_image == 0, axis=0)]
# eliminate all the pixels with 255 values for all 8 bands - AKA not actually part of the shapefile
out_image_trimmed = out_image_trimmed[:,~np.all(out_image_trimmed == 255, axis=0)]
# reshape the array to [pixel count, bands]
out_image_reshaped = out_image_trimmed.reshape(-1, band_count)
# append the labels to the y array
y = np.append(y,[shapefile["Classname"][index]] * out_image_reshaped.shape[0])
# stack the pizels onto the pixel array
X = np.vstack((X,out_image_reshaped))
Pairing Y with X¶
Now that we have the image we want to classify (our X feature inputs), and the land cover labels (our y labeled data), let's check to make sure they match in size so we can feed them to Naive Bayes:
# What are our classification labels?
labels = np.unique(shapefile["Classname"])
print('The training data include {n} classes: {classes}\n'.format(n=labels.size,
classes=labels))
# We will need a "X" matrix containing our features, and a "y" array containing our labels
print('Our X matrix is sized: {sz}'.format(sz=X.shape))
print('Our y array is sized: {sz}'.format(sz=y.shape))

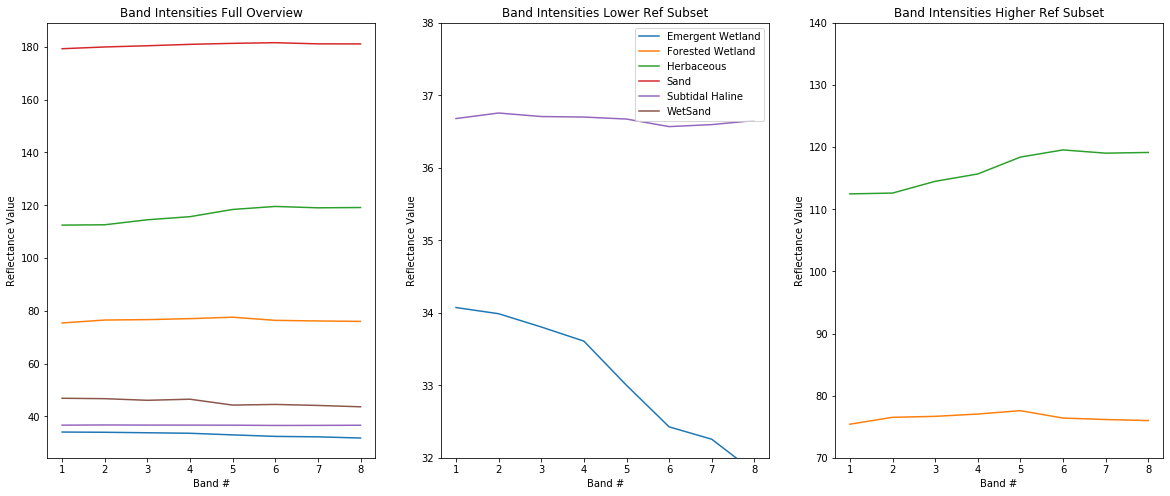

It all looks good! Let's explore the spectral signatures of each class now to make sure they're actually separable since all we're going by in this classification is pixel values.
fig, ax = plt.subplots(1,3, figsize=[20,8])
# numbers 1-8
band_count = np.arange(1,9)
classes = np.unique(y)
for class_type in classes:
band_intensity = np.mean(X[y==class_type, :], axis=0)
ax[0].plot(band_count, band_intensity, label=class_type)
ax[1].plot(band_count, band_intensity, label=class_type)
ax[2].plot(band_count, band_intensity, label=class_type)
# plot them as lines
# Add some axis labels
ax[0].set_xlabel('Band #')
ax[0].set_ylabel('Reflectance Value')
ax[1].set_ylabel('Reflectance Value')
ax[1].set_xlabel('Band #')
ax[2].set_ylabel('Reflectance Value')
ax[2].set_xlabel('Band #')
#ax[0].set_ylim(32,38)
ax[1].set_ylim(32,38)
ax[2].set_ylim(70,140)
#ax.set
ax[1].legend(loc="upper right")
# Add a title
ax[0].set_title('Band Intensities Full Overview')
ax[1].set_title('Band Intensities Lower Ref Subset')
ax[2].set_title('Band Intensities Higher Ref Subset')
They look okay but emergent wetland and water look quite similar! They're going to be difficult to differentiate.
Let's make a quick helper function, this one will convert the class labels into indicies and then assign a dictionary relating the class indices and their names.
def str_class_to_int(class_array):
class_array[class_array == 'Subtidal Haline'] = 0
class_array[class_array == 'WetSand'] = 1
class_array[class_array == 'Emergent Wetland'] = 2
class_array[class_array == 'Sand'] = 3
class_array[class_array == 'Herbaceous'] = 4
class_array[class_array == 'Forested Wetland'] = 5
return(class_array.astype(int))
Training the Classifier¶
Now that we have our X matrix of feature inputs (the spectral bands) and our y array (the labels), we can train our model.
Visit this web page to find the usage of GaussianNaiveBayes Classifier from scikit-learn.
from sklearn.naive_bayes import GaussianNB
gnb = GaussianNB()
gnb.fit(X, y)
It is that simple to train a classifier in scikit-learn! The hard part is often validation and interpretation.
Predicting on the image¶
With our Naive Bayes classifier fit, we can now proceed by trying to classify the entire image:
We're only going to open the subset of the image we viewed above because otherwise it is computationally too intensive for most users.
from rasterio.plot import show
from rasterio.plot import show_hist
from rasterio.windows import Window
from rasterio.plot import reshape_as_raster, reshape_as_image
with rasterio.open(img_fp) as src:
# may need to reduce this image size if your kernel crashes, takes a lot of memory
img = src.read()[:, 150:600, 250:1400]
# Take our full image and reshape into long 2d array (nrow * ncol, nband) for classification
print(img.shape)
reshaped_img = reshape_as_image(img)
print(reshaped_img.shape)
Now we can predict for each pixel in our image:
class_prediction = gnb.predict(reshaped_img.reshape(-1, 8))
# Reshape our classification map back into a 2D matrix so we can visualize it
class_prediction = class_prediction.reshape(reshaped_img[:, :, 0].shape)
Because our shapefile came with the labels as strings we want to convert them to a numpy array with ints using the helper function we made earlier.
class_prediction = str_class_to_int(class_prediction)
Let's visualize it!¶
First we'll make a colormap so we can visualize the classes, which are just encoded as integers, in more logical colors. Don't worry too much if this code is confusing! It can be a little clunky to specify colormaps for matplotlib.
def color_stretch(image, index):
colors = image[:, :, index].astype(np.float64)
for b in range(colors.shape[2]):
colors[:, :, b] = rasterio.plot.adjust_band(colors[:, :, b])
return colors
# find the highest pixel value in the prediction image
n = int(np.max(class_prediction))
# next setup a colormap for our map
colors = dict((
(0, (48, 156, 214, 255)), # Blue - Water
(1, (139,69,19, 255)), # Brown - WetSand
(2, (96, 19, 134, 255)), # Purple - Emergent Wetland
(3, (244, 164, 96, 255)), # Tan - Sand
(4, (206, 224, 196, 255)), # Lime - Herbaceous
(5, (34, 139, 34, 255)), # Forest Green - Forest
))
# Put 0 - 255 as float 0 - 1
for k in colors:
v = colors[k]
_v = [_v / 255.0 for _v in v]
colors[k] = _v
index_colors = [colors[key] if key in colors else
(255, 255, 255, 0) for key in range(0, n+1)]
cmap = plt.matplotlib.colors.ListedColormap(index_colors, 'Classification', n+1)

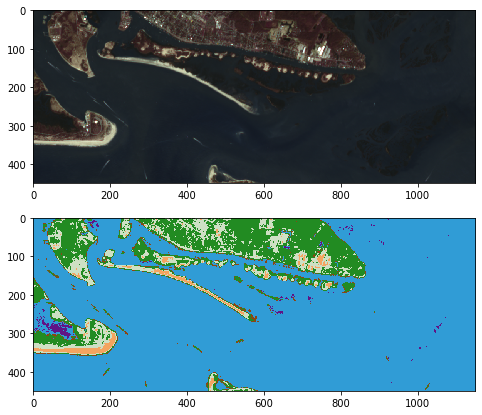

Now show the classified map next to the RGB image!
fig, axs = plt.subplots(2,1,figsize=(10,7))
img_stretched = color_stretch(reshaped_img, [4, 3, 2])
axs[0].imshow(img_stretched)
axs[1].imshow(class_prediction, cmap=cmap, interpolation='none')
fig.show()
This looks pretty good!¶
Let's generate a map of Normalized Difference Water Index (NDWI) and NDVI just to compare with out output map.
NDWI is similar to NDVI but for identifying water.
with rasterio.open(img_fp) as src:
green_band = src.read(3)
red_band = src.read(4)
nir_band = src.read(8)
ndwi = (green_band.astype(float) - nir_band.astype(float)) / (green_band.astype(float) + nir_band.astype(float))
ndvi = (nir_band.astype(float) - red_band.astype(float)) / (red_band.astype(float) + nir_band.astype(float))
Subset them to our area of interest:
ndwi = ndwi[150:600, 250:1400]
ndvi = ndvi[150:600, 250:1400]

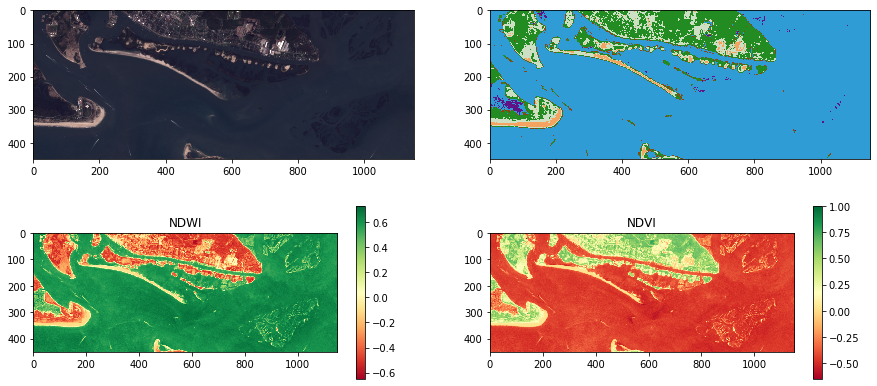

Display all four maps:
fig, axs = plt.subplots(2,2,figsize=(15,7))
img_stretched = color_stretch(reshaped_img, [3, 2, 1])
axs[0,0].imshow(img_stretched)
axs[0,1].imshow(class_prediction, cmap=cmap, interpolation='none')
nwdi_plot = axs[1,0].imshow(ndwi, cmap="RdYlGn")
axs[1,0].set_title("NDWI")
fig.colorbar(nwdi_plot, ax=axs[1,0])
ndvi_plot = axs[1,1].imshow(ndvi, cmap="RdYlGn")
axs[1,1].set_title("NDVI")
fig.colorbar(ndvi_plot, ax=axs[1,1])
plt.show()
Looks pretty good! Areas that are high on the NDWI ratio are generally classified as water and areas high on NDVI are forest and herbaceous. It does seem like the wetland areas (e.g. the bottom right island complex) aren't being picked up so it might be worth experimenting with other algorithms!

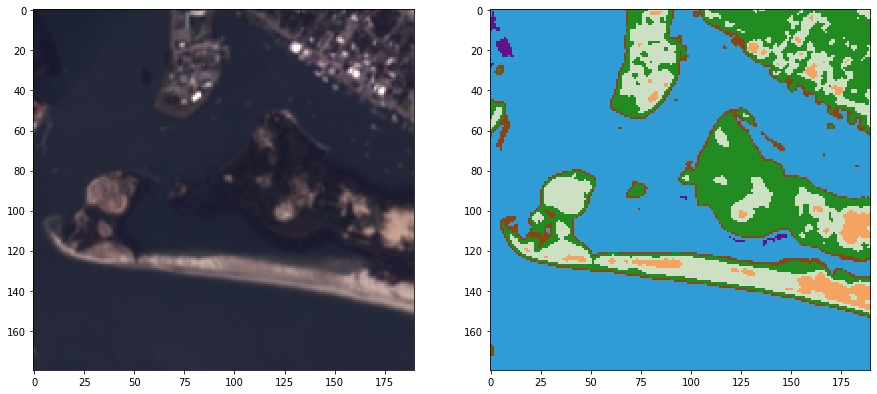

Let's take a closer look at the Duke Marine Lab and the tip of the Rachel Carson Reserve.
fig, axs = plt.subplots(1,2,figsize=(15,15))
img_stretched = color_stretch(reshaped_img, [3, 2, 1])
axs[0].imshow(img_stretched[0:180, 160:350])
axs[1].imshow(class_prediction[0:180, 160:350], cmap=cmap, interpolation='none')
fig.show()
This actually doesn't look half bad! Land cover mapping is a complex problem and one where there are many approaches and tools for improving a map.
Testing an Unsupervised Classification Algorithm¶

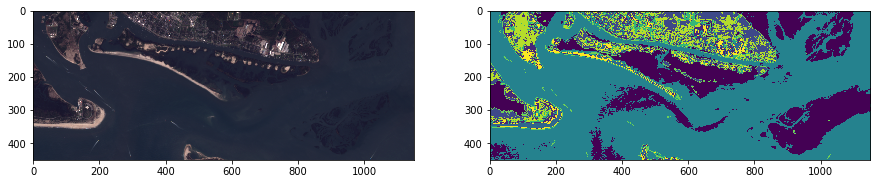

Let's also try a unsupervised classification algorithm, k-means clustering, in the scikit-learn library (documentation)
K-means (wikipedia page) aims to partition n observations into k clusters in which each observation belongs to the cluster with the nearest mean, serving as a prototype of the cluster.
from sklearn.cluster import KMeans
bands, rows, cols = img.shape
k = 10 # num of clusters
kmeans_predictions = KMeans(n_clusters=k, random_state=0).fit(reshaped_img.reshape(-1, 8))
kmeans_predictions_2d = kmeans_predictions.labels_.reshape(rows, cols)
# Now show the classmap next to the image
fig, axs = plt.subplots(1,2,figsize=(15,8))
img_stretched = color_stretch(reshaped_img, [3, 2, 1])
axs[0].imshow(img_stretched)
axs[1].imshow(kmeans_predictions_2d)
Wow this looks like it was better able to distinguish some areas like the wetland and submerged sand than our supervised classification approach! But supervised usually does better with some tuning, luckily there are lots of ways to think about improving our supervised method.
Wrapup¶
We've seen how we can use scikit-learn to implement the Naive Bayes classifier for land cover classification. A couple future directions that immediately follow this tutorial include:
- Extend the lessons learned in the visualization chapter to explore the class separability along various dimensions of the data. For example, plot bands against each other and label each point in the scatter plot a different color according to the training data label.
- Add additional features - would using NDVI as well as the spectral bands improve our classification?
scikit-learnincludes many machine learning classifiers -- are any of these better than Naive Bayes for our goal? SVM? Nearest Neighbors? Others?- In this example we only use 8-bit imagery, 16 or 32 bit may contain more information that helps distinguish the classes
- Our training data was created using ultra-high resolution drone imagery. A good deal of error could be coming from the fact that the training samples don't line up exactly with the classes in this imagery. Editing the training shapefile to be better matched to this image could lead to a major improvement.
- This approach only leverages the spectral information in Landsat. What would happen if we looked into some spatial information metrics like incorporating moving window statistics?
- And while more advanced, deep learning methods (like in the next chapter!!!) could lead to major improvements in this classification!
Quantative Accuracy Assessments!¶
We examined our maps for qualitative accuracy but we'll need to perform a proper accuracy assessment based on a probability sample to conclude anything about the accuracy of the entire area. With the information from the accuracy assessment, we will be able not only to tell how good the map is, but more importantly we will be able to come up with statistically defensible unbiased estimates with confidence intervals of the land cover class areas in the map. For more information, see Olofsson, et. al., 2013.
