Semiparametric Estimator Comparisons

This page adds two cached Monte Carlo comparisons for the new semiparametric estimators.

• Continuous treatment: a partially linear design where both the treatment regression and the outcome nuisance are strongly nonlinear. EPLM only sees the raw controls, while PartiallyLinearDML gets a richer nonlinear basis and cross-fit ridge nuisances.
• Binary treatment: a clean logit assignment model in the raw covariates, but a nonlinear response surface. We compare a plain linear regression on the raw controls, entropy balancing on a richer balance basis, and cross-fit AIPW on that same basis.

As with the other ablation page, Quarto execution caching and document freezing are enabled so later site renders reuse the saved outputs until this file changes.

1 Imports And Helpers

from html import escape

import matplotlib.pyplot as plt
import numpy as np
from IPython.display import HTML, display

import crabbymetrics as cm

np.set_printoptions(precision=4, suppress=True)


def html_table(headers, rows):
    parts = [
        "<table>",
        "<thead>",
        "<tr>",
        *[f"<th>{escape(str(header))}</th>" for header in headers],
        "</tr>",
        "</thead>",
        "<tbody>",
    ]
    for row in rows:
        parts.append("<tr>")
        for cell in row:
            parts.append(f"<td>{cell}</td>")
        parts.append("</tr>")
    parts.extend(["</tbody>", "</table>"])
    return "".join(parts)


def expit(x):
    return 1.0 / (1.0 + np.exp(-x))


def summarize_interval(estimates, ses, truth):
    estimates = np.asarray(estimates)
    ses = np.asarray(ses)
    covered = np.abs(estimates - truth) <= 1.96 * ses
    return {
        "mean_estimate": float(estimates.mean()),
        "bias": float(estimates.mean() - truth),
        "abs_bias": float(abs(estimates.mean() - truth)),
        "empirical_sd": float(estimates.std(ddof=1)),
        "mean_se": float(ses.mean()),
        "rmse": float(np.sqrt(np.mean((estimates - truth) ** 2))),
        "coverage": float(covered.mean()),
    }


def summarize_point(estimates, truth):
    estimates = np.asarray(estimates)
    return {
        "mean_estimate": float(estimates.mean()),
        "bias": float(estimates.mean() - truth),
        "abs_bias": float(abs(estimates.mean() - truth)),
        "empirical_sd": float(estimates.std(ddof=1)),
        "rmse": float(np.sqrt(np.mean((estimates - truth) ** 2))),
    }


def plot_metric(ax, results, metric, title, ylabel):
    sample_sizes = sorted({entry["n"] for entry in results})
    methods = []
    for entry in results:
        if entry["method"] not in methods:
            methods.append(entry["method"])

    for method in methods:
        values = [
            next(entry[metric] for entry in results if entry["n"] == n and entry["method"] == method)
            for n in sample_sizes
        ]
        ax.plot(sample_sizes, values, marker="o", linewidth=2.0, label=method)

    ax.set_title(title)
    ax.set_xlabel("Sample size")
    ax.set_ylabel(ylabel)
    ax.legend()


def continuous_basis(x):
    x1, x2, x3, x4, x5 = x.T
    return np.column_stack(
        [
            x,
            x**2 - 1.0,
            x1 * x2,
            x1 * x3,
            x2 * x4,
            x3 * x5,
            np.sin(x1),
            np.cos(x2),
            np.sin(x1 * x2),
            np.exp(0.3 * x3),
            np.exp(0.3 * x4),
            np.tanh(x5),
        ]
    )


def balance_basis(x):
    x1, x2, x3, x4, x5 = x.T
    return np.column_stack(
        [
            x,
            np.exp(0.35 * x1),
            x2 * x3,
            x4**2 - 1.0,
            np.sin(x5),
        ]
    )

2 Monte Carlo Design

The continuous-treatment section reports bias, RMSE, and 95 percent coverage because both estimators return influence-function standard errors. BalancingWeights is currently a weighting estimator rather than a full inference object, so the binary-treatment section focuses on point-estimate bias and RMSE.

sample_sizes = [300, 800, 1600]
continuous_reps = 200
binary_reps = 150

display(
    HTML(
        html_table(
            ["Experiment", "Replications Per n", "Target"],
            [
                ["Continuous treatment", continuous_reps, "Partially linear coefficient on D"],
                ["Binary treatment", binary_reps, "Average treatment effect"],
            ],
        )
    )
)

Experiment	Replications Per n	Target
Continuous treatment	200	Partially linear coefficient on D
Binary treatment	150	Average treatment effect

3 Continuous Treatment: EPLM Versus Partially Linear DML

The data generating process is

\[ D_i = m(X_i) + V_i, \]

with

\[ m(X_i) = 0.45 X_{i1} - 0.35 X_{i2} + 0.25 X_{i3} + 0.7 \sin(X_{i1} X_{i2}) + 0.45 \exp(0.35 X_{i4}) - 0.45 (X_{i5}^2 - 1), \]

and

\[ Y_i = 1 + \tau D_i + g(X_i) + U_i, \]

where

\[ g(X_i) = 0.6 \sin(X_{i1}) + 0.5 X_{i2} X_{i3} + 0.35 \exp(0.25 X_{i4}) - 0.4 (X_{i5}^2 - 1) + 0.3 \cos(X_{i1} X_{i2}), \qquad \tau = 1.25. \]

EPLM is intentionally given only the raw five covariates, so its linear nuisance model is misspecified on both the treatment and outcome side. PartiallyLinearDML instead gets the richer basis \(B(X)\) defined above and uses three-fold cross-fitting with a log-spaced ridge grid. Within each fold, the outcome and treatment nuisances choose their own penalties from that common candidate set.

3.1 Representative Dataset

def continuous_treatment_dgp(n, rng, tau=1.25):
    x = rng.normal(size=(n, 5))
    x1, x2, x3, x4, x5 = x.T
    m = (
        0.45 * x1
        - 0.35 * x2
        + 0.25 * x3
        + 0.7 * np.sin(x1 * x2)
        + 0.45 * np.exp(0.35 * x4)
        - 0.45 * (x5**2 - 1.0)
    )
    d = m + rng.normal(scale=0.7, size=n)
    g = (
        0.6 * np.sin(x1)
        + 0.5 * x2 * x3
        + 0.35 * np.exp(0.25 * x4)
        - 0.4 * (x5**2 - 1.0)
        + 0.3 * np.cos(x1 * x2)
    )
    y = 1.0 + tau * d + g + rng.normal(scale=0.9, size=n)
    return y, d, x, tau


rng = np.random.default_rng(20260331)
y, d, x, tau_true = continuous_treatment_dgp(1200, rng)
continuous_penalty_grid = np.logspace(-4, 2, 15)

eplm = cm.EPLM()
eplm.fit(y, d, x)
eplm_summary = eplm.summary(vcov="hc1")

dml = cm.PartiallyLinearDML(penalty=continuous_penalty_grid, cv=3, n_folds=3, seed=11)
dml.fit(y, d, continuous_basis(x))
dml_summary = dml.summary(vcov="hc1")

display(
    HTML(
        html_table(
            ["Estimator", "Estimate", "SE"],
            [
                ["Truth", f"{tau_true:.4f}", "--"],
                ["EPLM on raw X", f"{eplm_summary['coef']:.4f}", f"{eplm_summary['se']:.4f}"],
                ["PartiallyLinearDML on B(X)", f"{dml_summary['coef']:.4f}", f"{dml_summary['se']:.4f}"],
            ],
        )
    )
)

Estimator	Estimate	SE
Truth	1.2500	--
EPLM on raw X	1.6242	0.0422
PartiallyLinearDML on B(X)	1.1997	0.0434

3.2 Simulation Code

def simulate_continuous(sample_sizes, reps, seed):
    rng = np.random.default_rng(seed)
    out = []
    penalty_grid = np.logspace(-4, 2, 15)

    for n in sample_sizes:
        eplm_estimates = []
        eplm_ses = []
        dml_estimates = []
        dml_ses = []

        for _ in range(reps):
            y, d, x, tau = continuous_treatment_dgp(n, rng)

            eplm = cm.EPLM()
            eplm.fit(y, d, x)
            eplm_summary = eplm.summary(vcov="hc1")
            eplm_estimates.append(float(eplm_summary["coef"]))
            eplm_ses.append(float(eplm_summary["se"]))

            dml = cm.PartiallyLinearDML(penalty=penalty_grid, cv=3, n_folds=3, seed=11)
            dml.fit(y, d, continuous_basis(x))
            dml_summary = dml.summary(vcov="hc1")
            dml_estimates.append(float(dml_summary["coef"]))
            dml_ses.append(float(dml_summary["se"]))

        out.append(
            {
                "n": n,
                "method": "EPLM on raw X",
                **summarize_interval(eplm_estimates, eplm_ses, tau),
            }
        )
        out.append(
            {
                "n": n,
                "method": "PartiallyLinearDML on B(X)",
                **summarize_interval(dml_estimates, dml_ses, tau),
            }
        )

    return out


continuous_results = simulate_continuous(sample_sizes, continuous_reps, seed=20260401)

display(
    HTML(
        html_table(
            ["Method", "n", "Mean", "Bias", "Empirical SD", "Mean SE", "RMSE", "Coverage"],
            [
                [
                    entry["method"],
                    entry["n"],
                    f"{entry['mean_estimate']:.4f}",
                    f"{entry['bias']:.4f}",
                    f"{entry['empirical_sd']:.4f}",
                    f"{entry['mean_se']:.4f}",
                    f"{entry['rmse']:.4f}",
                    f"{entry['coverage']:.3f}",
                ]
                for entry in continuous_results
            ],
        )
    )
)

Method	n	Mean	Bias	Empirical SD	Mean SE	RMSE	Coverage
EPLM on raw X	300	1.5897	0.3397	0.0825	0.0750	0.3496	0.025
PartiallyLinearDML on B(X)	300	1.2420	-0.0080	0.1218	0.0890	0.1218	0.880
EPLM on raw X	800	1.6039	0.3539	0.0497	0.0467	0.3574	0.000
PartiallyLinearDML on B(X)	800	1.2588	0.0088	0.0572	0.0524	0.0578	0.915
EPLM on raw X	1600	1.5983	0.3483	0.0341	0.0337	0.3499	0.000
PartiallyLinearDML on B(X)	1600	1.2524	0.0024	0.0371	0.0370	0.0371	0.955

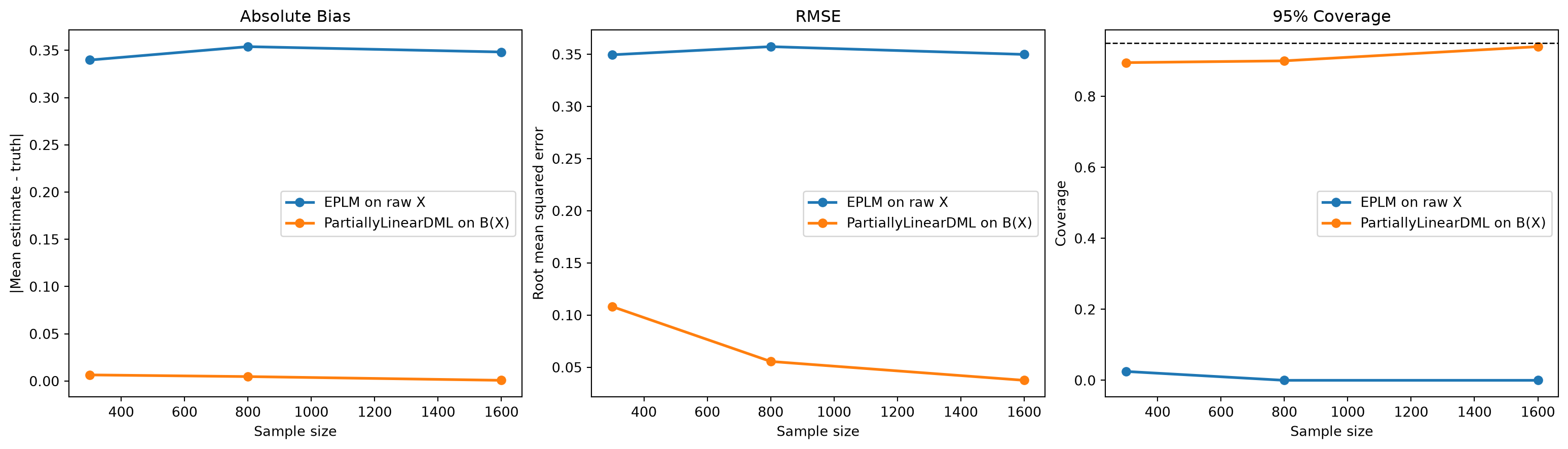

3.3 Continuous-Treatment Results

fig, axes = plt.subplots(1, 3, figsize=(16, 4.5), constrained_layout=True)
plot_metric(axes[0], continuous_results, "abs_bias", "Absolute Bias", "|Mean estimate - truth|")
plot_metric(axes[1], continuous_results, "rmse", "RMSE", "Root mean squared error")
plot_metric(axes[2], continuous_results, "coverage", "95% Coverage", "Coverage")
axes[2].axhline(0.95, color="black", linestyle="--", linewidth=1.0)
plt.show()

The pattern is sharp. Once the nuisance functions move outside the span of the raw controls, EPLM inherits the misspecification and never recovers. Cross-fit DML, fed a richer design basis, is much closer to the truth and its HC1 intervals behave sensibly.

4 Binary Treatment: Regression Versus Balancing Weights Versus AIPW

Now the treatment is binary:

\[ D_i \sim \mathrm{Bernoulli}(\pi_i), \qquad \pi_i = \Lambda\!\left( 0.1 + 0.75 X_{i1} - 0.6 X_{i2} + 0.45 X_{i3} - 0.3 X_{i4} \right). \]

The untreated potential outcome is nonlinear:

\[ Y_i(0) = 0.5 + 1.2 \exp(0.35 X_{i1}) + 0.8 X_{i2} X_{i3} + 0.6 (X_{i4}^2 - 1) + 0.35 \sin(X_{i5}), \]

and the treatment effect is constant:

\[ Y_i(1) = Y_i(0) + \tau, \qquad \tau = 1. \]

The comparison is intentionally asymmetric:

• Vanilla regression fits OLS on [D, X] and therefore relies on a linear outcome regression in the raw covariates.
• Entropy balancing reweights the treated and control groups separately to the pooled mean of a richer balance basis \(B(X)\).
• AIPW uses that same \(B(X)\) inside its cross-fit ridge nuisances, with a log-spaced penalty grid, n_folds=3, and propensity_clip=0.1 to stabilize the propensity fit. The treated-outcome, control-outcome, and propensity regressions each choose their own penalties within each fold.

4.1 Representative Dataset

def binary_treatment_dgp(n, rng, tau=1.0):
    x = rng.normal(size=(n, 5))
    x1, x2, x3, x4, x5 = x.T
    pi = expit(0.1 + 0.75 * x1 - 0.6 * x2 + 0.45 * x3 - 0.3 * x4)
    d = rng.binomial(1, pi, size=n).astype(float)
    mu0 = (
        0.5
        + 1.2 * np.exp(0.35 * x1)
        + 0.8 * x2 * x3
        + 0.6 * (x4**2 - 1.0)
        + 0.35 * np.sin(x5)
    )
    y = mu0 + tau * d + rng.normal(scale=1.0, size=n)
    return y, d, x, tau


def fit_entropy_balancing_ate(y, d, x):
    b = balance_basis(x)
    treated = d == 1.0
    control = ~treated

    treated_model = cm.BalancingWeights(
        objective="entropy",
        solver="auto",
        autoscale=True,
        max_iterations=500,
        tolerance=1e-9,
    )
    control_model = cm.BalancingWeights(
        objective="entropy",
        solver="auto",
        autoscale=True,
        max_iterations=500,
        tolerance=1e-9,
    )
    treated_model.fit(b[treated], b)
    control_model.fit(b[control], b)

    treated_summary = treated_model.summary()
    control_summary = control_model.summary()
    treated_weights = np.asarray(treated_summary["weights"])
    control_weights = np.asarray(control_summary["weights"])

    ate_hat = treated_weights @ y[treated] - control_weights @ y[control]
    diagnostics = {
        "treated_max_abs_diff": float(treated_summary["max_abs_diff"]),
        "control_max_abs_diff": float(control_summary["max_abs_diff"]),
    }
    return ate_hat, diagnostics


rng = np.random.default_rng(20260402)
y, d, x, tau_true = binary_treatment_dgp(1500, rng)
binary_penalty_grid = np.logspace(-4, 2, 15)

ols = cm.OLS()
ols.fit(np.column_stack([d, x]), y)
ols_summary = ols.summary(vcov="hc1")

balancing_ate, balancing_diag = fit_entropy_balancing_ate(y, d, x)

aipw = cm.AIPW(penalty=binary_penalty_grid, cv=3, n_folds=3, propensity_clip=0.1, seed=19)
aipw.fit(y, d, balance_basis(x))
aipw_summary = aipw.summary(vcov="hc1")

display(
    HTML(
        html_table(
            ["Estimator", "Estimate"],
            [
                ["Truth", f"{tau_true:.4f}"],
                ["OLS on [D, X]", f"{ols_summary['coef'][0]:.4f}"],
                ["Entropy balancing on B(X)", f"{balancing_ate:.4f}"],
                ["AIPW on B(X)", f"{aipw_summary['ate']:.4f}"],
            ],
        )
    )
)

Estimator	Estimate
Truth	1.0000
OLS on [D, X]	1.0200
Entropy balancing on B(X)	0.9882
AIPW on B(X)	1.0127

display(
    HTML(
        html_table(
            ["Balance diagnostic", "Value"],
            [
                ["Treated weights max abs diff from pooled target", f"{balancing_diag['treated_max_abs_diff']:.3e}"],
                ["Control weights max abs diff from pooled target", f"{balancing_diag['control_max_abs_diff']:.3e}"],
            ],
        )
    )
)

Balance diagnostic	Value
Treated weights max abs diff from pooled target	9.387e-09
Control weights max abs diff from pooled target	5.618e-08

4.2 Simulation Code

def simulate_binary(sample_sizes, reps, seed):
    rng = np.random.default_rng(seed)
    out = []
    penalty_grid = np.logspace(-4, 2, 15)

    for n in sample_sizes:
        ols_estimates = []
        balancing_estimates = []
        aipw_estimates = []

        for _ in range(reps):
            y, d, x, tau = binary_treatment_dgp(n, rng)

            ols = cm.OLS()
            ols.fit(np.column_stack([d, x]), y)
            ols_summary = ols.summary(vcov="hc1")
            ols_estimates.append(float(ols_summary["coef"][0]))

            balancing_ate, _ = fit_entropy_balancing_ate(y, d, x)
            balancing_estimates.append(float(balancing_ate))

            aipw = cm.AIPW(
                penalty=penalty_grid,
                cv=3,
                n_folds=3,
                propensity_clip=0.1,
                seed=19,
            )
            aipw.fit(y, d, balance_basis(x))
            aipw_summary = aipw.summary(vcov="hc1")
            aipw_estimates.append(float(aipw_summary["ate"]))

        out.append(
            {
                "n": n,
                "method": "OLS on [D, X]",
                **summarize_point(ols_estimates, tau),
            }
        )
        out.append(
            {
                "n": n,
                "method": "Entropy balancing on B(X)",
                **summarize_point(balancing_estimates, tau),
            }
        )
        out.append(
            {
                "n": n,
                "method": "AIPW on B(X)",
                **summarize_point(aipw_estimates, tau),
            }
        )

    return out


binary_results = simulate_binary(sample_sizes, binary_reps, seed=20260403)

display(
    HTML(
        html_table(
            ["Method", "n", "Mean", "Bias", "Empirical SD", "RMSE"],
            [
                [
                    entry["method"],
                    entry["n"],
                    f"{entry['mean_estimate']:.4f}",
                    f"{entry['bias']:.4f}",
                    f"{entry['empirical_sd']:.4f}",
                    f"{entry['rmse']:.4f}",
                ]
                for entry in binary_results
            ],
        )
    )
)

Method	n	Mean	Bias	Empirical SD	RMSE
OLS on [D, X]	300	1.0070	0.0070	0.1816	0.1811
Entropy balancing on B(X)	300	0.9941	-0.0059	0.1272	0.1269
AIPW on B(X)	300	0.9989	-0.0011	0.1366	0.1362
OLS on [D, X]	800	0.9987	-0.0013	0.1232	0.1228
Entropy balancing on B(X)	800	1.0006	0.0006	0.0891	0.0888
AIPW on B(X)	800	1.0015	0.0015	0.0942	0.0939
OLS on [D, X]	1600	0.9932	-0.0068	0.0780	0.0780
Entropy balancing on B(X)	1600	0.9898	-0.0102	0.0566	0.0573
AIPW on B(X)	1600	0.9900	-0.0100	0.0598	0.0604

4.3 Binary-Treatment Results

fig, axes = plt.subplots(1, 2, figsize=(12, 4.5), constrained_layout=True)
plot_metric(axes[0], binary_results, "abs_bias", "Absolute Bias", "|Mean estimate - truth|")
plot_metric(axes[1], binary_results, "rmse", "RMSE", "Root mean squared error")
plt.show()

This second design is deliberately less one-sided than the continuous-treatment case.

• Vanilla regression is hurt by the nonlinear outcome surface and is uniformly less efficient than the calibrated weighting estimator.
• Entropy balancing does especially well here because the assignment model is clean and the richer balance basis directly targets the part of the covariate distribution that matters for the response surface.
• AIPW improves materially once the ridge propensity is clipped away from the extremes, but in this particular finite-sample design it is still somewhat noisier than direct balancing.

That is a useful result rather than an inconvenience: when treatment assignment is low-dimensional and balance can be imposed directly, a dedicated balancing estimator can be hard to beat.
