First Course Ding: Chapter 13

ATT estimation and balancing weights

Chapter 13 shifts attention from the ATE to the ATT. In this library, the natural bridge is BalancingWeights, because it directly targets the treated covariate distribution instead of estimating a propensity score and then inverting it.

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import crabbymetrics as cm

np.set_printoptions(precision=4, suppress=True)


def repo_root():
    for candidate in [Path.cwd().resolve(), *Path.cwd().resolve().parents]:
        if (candidate / "ding_w_source").exists():
            return candidate
    raise FileNotFoundError("could not locate ding_w_source from the current working directory")


def expit(x):
    return 1.0 / (1.0 + np.exp(-x))


def poly_basis(x):
    return np.column_stack([x, x**2])

1 NHANES ATT Example

data = pd.read_csv(repo_root() / "ding_w_source" / "nhanes_bmi.csv")
y = data["BMI"].to_numpy(dtype=float)
d = data["School_meal"].to_numpy(dtype=np.int32)
x = data[["age", "ChildSex", "black", "mexam", "pir200_plus", "WIC", "Food_Stamp", "AnyIns", "RefAge"]].to_numpy(dtype=float)
x = (x - x.mean(axis=0)) / np.where(x.std(axis=0) > 1e-12, x.std(axis=0), 1.0)

treated = d == 1
control = ~treated

reg0 = cm.OLS()
reg0.fit(x[control], y[control])
y0_hat = reg0.predict(x)
att_reg = float(y[treated].mean() - y0_hat[treated].mean())

logit = cm.Logit(alpha=1.0, max_iterations=300)
logit.fit(x, d)
logit_s = logit.summary()
pscore = expit(logit_s["intercept"] + x @ np.asarray(logit_s["coef"]))
odds = pscore / np.clip(1.0 - pscore, 1e-6, None)
odds_w = odds[control] / odds[control].sum()
att_odds = float(y[treated].mean() - np.dot(odds_w, y[control]))

entropy = cm.BalancingWeights(
    objective="entropy",
    solver="auto",
    autoscale=True,
    l2_norm=0.02,
    max_iterations=300,
    tolerance=1e-8,
)
entropy.fit(x[control], x[treated])
entropy_s = entropy.summary()
att_entropy = float(y[treated].mean() - np.dot(np.asarray(entropy_s["weights"]), y[control]))

quad = cm.BalancingWeights(
    objective="quadratic",
    solver="auto",
    autoscale=True,
    l2_norm=0.02,
    max_iterations=300,
    tolerance=1e-8,
)
quad.fit(x[control], x[treated])
quad_s = quad.summary()
att_quad = float(y[treated].mean() - np.dot(np.asarray(quad_s["weights"]), y[control]))

print("Outcome-regression ATT:", round(att_reg, 4))
print("Odds-weight ATT:", round(att_odds, 4))
print("Entropy-balancing ATT:", round(att_entropy, 4))
print("Quadratic-balancing ATT:", round(att_quad, 4))

Outcome-regression ATT: -0.3624
Odds-weight ATT: -0.3808
Entropy-balancing ATT: -0.1936
Quadratic-balancing ATT: -0.3047

2 Balance Before And After Weighting

def standardized_mean_difference(x_treated, x_control, weights=None):
    mt = x_treated.mean(axis=0)
    if weights is None:
        mc = x_control.mean(axis=0)
        vc = x_control.var(axis=0)
    else:
        mc = np.average(x_control, axis=0, weights=weights)
        vc = np.average((x_control - mc) ** 2, axis=0, weights=weights)
    vt = x_treated.var(axis=0)
    scale = np.sqrt(0.5 * (vt + vc))
    scale = np.where(scale > 1e-12, scale, 1.0)
    return (mt - mc) / scale


smd_before = standardized_mean_difference(x[treated], x[control])
smd_entropy = standardized_mean_difference(x[treated], x[control], np.asarray(entropy_s["weights"]))
smd_quad = standardized_mean_difference(x[treated], x[control], np.asarray(quad_s["weights"]))

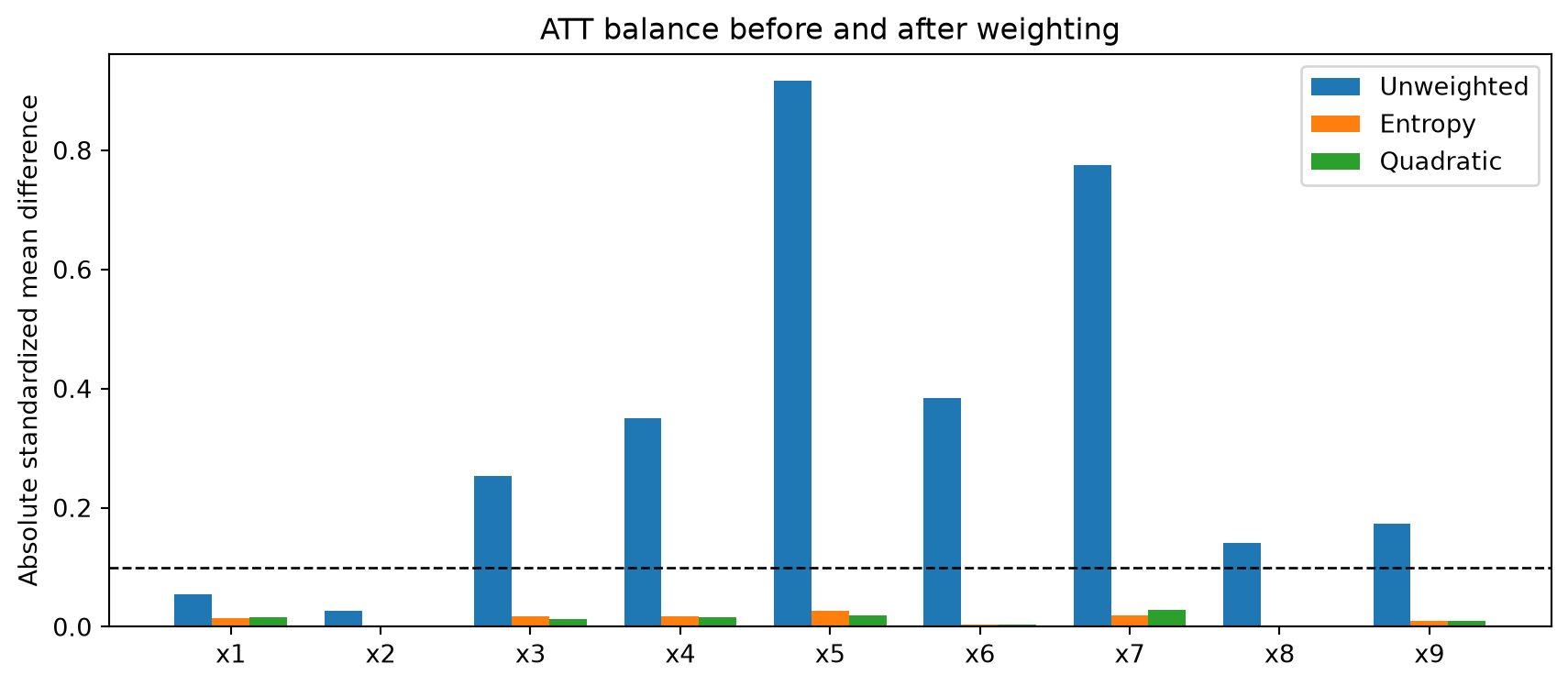

fig, ax = plt.subplots(figsize=(9, 4))
labels = [f"x{j + 1}" for j in range(x.shape[1])]
xpos = np.arange(len(labels))
width = 0.25
ax.bar(xpos - width, np.abs(smd_before), width=width, label="Unweighted")
ax.bar(xpos, np.abs(smd_entropy), width=width, label="Entropy")
ax.bar(xpos + width, np.abs(smd_quad), width=width, label="Quadratic")
ax.axhline(0.1, color="black", linestyle="--", linewidth=1.0)
ax.set_xticks(xpos)
ax.set_xticklabels(labels)
ax.set_ylabel("Absolute standardized mean difference")
ax.set_title("ATT balance before and after weighting")
ax.legend()
plt.tight_layout()
plt.show()

For ATT work, balancing weights are the clean library-native translation of the chapter. They target the treated population directly, which is exactly the estimand shift that Chapter 13 is about.
