Variance Estimator Ablations

This page runs a cached Monte Carlo experiment on one narrow question: when the point estimator is held fixed, what happens if the variance estimator is wrong?

The three cases line up with the current library surface:

OLS: compare the homoskedastic textbook covariance to HC1 under heteroskedastic errors.
Poisson: compare the vanilla Fisher-information covariance to the QMLE sandwich under overdispersed counts with the mean still correctly specified.
GMM: compare the vanilla covariance to the sandwich covariance in one-step identity-weighted GMM under heteroskedastic moments.

The page uses Quarto execution caching and document freezing, so once the Monte Carlo cells have run, later site renders should reuse the saved outputs until this file changes.

1 Imports And Helpers

Show code

from html import escape

import matplotlib.pyplot as plt
import numpy as np

import crabbymetrics as cm
from IPython.display import HTML, display

np.set_printoptions(precision=4, suppress=True)


def html_table(headers, rows):
    parts = [
        "<table>",
        "<thead>",
        "<tr>",
        *[f"<th>{escape(str(header))}</th>" for header in headers],
        "</tr>",
        "</thead>",
        "<tbody>",
    ]
    for row in rows:
        parts.append("<tr>")
        for cell in row:
            parts.append(f"<td>{cell}</td>")
        parts.append("</tr>")
    parts.extend(["</tbody>", "</table>"])
    return "".join(parts)


def summarize_method(estimates, ses, truth):
    estimates = np.asarray(estimates)
    ses = np.asarray(ses)
    covered = np.abs(estimates - truth) <= 1.96 * ses
    return {
        "mean_estimate": float(estimates.mean()),
        "bias": float(estimates.mean() - truth),
        "empirical_sd": float(estimates.std(ddof=1)),
        "mean_se": float(ses.mean()),
        "coverage": float(covered.mean()),
        "mean_ci_length": float((2.0 * 1.96 * ses).mean()),
    }


def build_result_rows(results, model_name):
    rows = []
    for entry in results:
        rows.append(
            [
                model_name,
                entry["method"],
                entry["n"],
                f"{entry['mean_estimate']:.4f}",
                f"{entry['bias']:.4f}",
                f"{entry['empirical_sd']:.4f}",
                f"{entry['mean_se']:.4f}",
                f"{entry['coverage']:.3f}",
                f"{entry['mean_ci_length']:.4f}",
            ]
        )
    return rows


def plot_coverages(ax, results, title):
    sample_sizes = sorted({entry["n"] for entry in results})
    methods = []
    for entry in results:
        if entry["method"] not in methods:
            methods.append(entry["method"])

    for method in methods:
        coverage = [
            next(entry["coverage"] for entry in results if entry["n"] == n and entry["method"] == method)
            for n in sample_sizes
        ]
        ax.plot(sample_sizes, coverage, marker="o", linewidth=2.0, label=method)

    ax.axhline(0.95, color="black", linestyle="--", linewidth=1.0)
    ax.set_ylim(0.5, 1.0)
    ax.set_title(title)
    ax.set_xlabel("Sample size")
    ax.set_ylabel("95% CI coverage")
    ax.legend()

2 Monte Carlo Design

All three sections target the same style of diagnostic:

the empirical standard deviation of the point estimate across replications
the average reported standard error from each variance estimator
the 95% Wald confidence interval coverage for one target coefficient

The sample sizes are shared across sections, but the replication counts differ because OLS is a closed-form solve while Poisson and GMM are iterative:

Show code

sample_sizes = [100, 400, 1600]
ols_reps = 3000
poisson_reps = 700
gmm_reps = 700

display(
    HTML(
        html_table(
            ["Experiment", "Replications Per n", "Target"],
            [
                ["OLS", ols_reps, "Slope on the first regressor"],
                ["Poisson", poisson_reps, "Slope on the first regressor"],
                ["GMM", gmm_reps, "Coefficient on the endogenous regressor"],
            ],
        )
    )
)

Experiment	Replications Per n	Target
OLS	3000	Slope on the first regressor
Poisson	700	Slope on the first regressor
GMM	700	Coefficient on the endogenous regressor

3 Simulation Code

Show code

def simulate_ols(sample_sizes, reps, seed):
    rng = np.random.default_rng(seed)
    beta_true = np.array([0.5, 1.0, -0.6])
    out = []

    for n in sample_sizes:
        slope_estimates = []
        vanilla_ses = []
        hc1_ses = []

        for _ in range(reps):
            x = rng.normal(size=(n, 2))
            sigma = 0.4 + 0.9 * x[:, 0] ** 2
            y = beta_true[0] + x @ beta_true[1:] + sigma * rng.normal(size=n)
            model = cm.OLS()
            model.fit(x, y)
            vanilla = model.summary(vcov="vanilla")
            hc1 = model.summary(vcov="hc1")

            slope_estimates.append(float(vanilla["coef"][0]))
            vanilla_ses.append(float(vanilla["coef_se"][0]))
            hc1_ses.append(float(hc1["coef_se"][0]))

        out.append({"n": n, "method": "Vanilla", **summarize_method(slope_estimates, vanilla_ses, beta_true[1])})
        out.append({"n": n, "method": "HC1", **summarize_method(slope_estimates, hc1_ses, beta_true[1])})

    return out


def simulate_poisson(sample_sizes, reps, seed):
    rng = np.random.default_rng(seed)
    beta_true = np.array([0.2, 0.4, -0.3])
    out = []

    for n in sample_sizes:
        slope_estimates = []
        vanilla_ses = []
        qmle_ses = []

        for _ in range(reps):
            x = rng.normal(size=(n, 2))
            design = np.column_stack([np.ones(n), x])
            mu = np.exp(design @ beta_true)
            mixing = rng.gamma(shape=2.0, scale=0.5, size=n)
            y = rng.poisson(mu * mixing).astype(float)

            model = cm.Poisson(alpha=0.0, max_iterations=200, tolerance=1e-8)
            model.fit(x, y)
            vanilla = model.summary(vcov="vanilla")
            qmle = model.summary(vcov="sandwich")

            slope_estimates.append(float(vanilla["coef"][0]))
            vanilla_ses.append(float(vanilla["coef_se"][0]))
            qmle_ses.append(float(qmle["coef_se"][0]))

        out.append(
            {"n": n, "method": "Vanilla Fisher", **summarize_method(slope_estimates, vanilla_ses, beta_true[1])}
        )
        out.append(
            {"n": n, "method": "QMLE Sandwich", **summarize_method(slope_estimates, qmle_ses, beta_true[1])}
        )

    return out


def gmm_moments(theta, data):
    resid = data["y"] - data["x"] * theta[0]
    return data["z"] * resid[:, None]


def gmm_jacobian(theta, data):
    del theta
    return -(data["z"].T @ data["x"][:, None]) / data["x"].shape[0]


def simulate_gmm(sample_sizes, reps, seed):
    rng = np.random.default_rng(seed)
    beta_true = 1.0
    out = []

    for n in sample_sizes:
        slope_estimates = []
        vanilla_ses = []
        sandwich_ses = []

        for _ in range(reps):
            z = rng.normal(size=(n, 3))
            v = rng.normal(size=n)
            eps = rng.normal(size=n)
            x = z @ np.array([0.9, 0.45, -0.35]) + v
            u = (0.3 + 0.5 * z[:, 0] ** 2) * eps + 0.6 * v
            y = beta_true * x + u

            zx = z.T @ x
            zy = z.T @ y
            theta0 = np.array([(zx @ zy) / (zx @ zx)])

            model = cm.GMM(gmm_moments, jacobian_fn=gmm_jacobian, max_iterations=200, tolerance=1e-10)
            model.fit({"x": x, "y": y, "z": z}, theta0, weighting="identity")

            vanilla = model.summary(vcov="vanilla")
            sandwich = model.summary(vcov="sandwich", omega="iid")
            slope_estimates.append(float(vanilla["coef"][0]))
            vanilla_ses.append(float(vanilla["se"][0]))
            sandwich_ses.append(float(sandwich["se"][0]))

        out.append({"n": n, "method": "Vanilla", **summarize_method(slope_estimates, vanilla_ses, beta_true)})
        out.append({"n": n, "method": "Sandwich", **summarize_method(slope_estimates, sandwich_ses, beta_true)})

    return out

4 Cached Monte Carlo Runs

Show code

ols_results = simulate_ols(sample_sizes, ols_reps, seed=20260322)
poisson_results = simulate_poisson(sample_sizes, poisson_reps, seed=20260323)
gmm_results = simulate_gmm(sample_sizes, gmm_reps, seed=20260324)

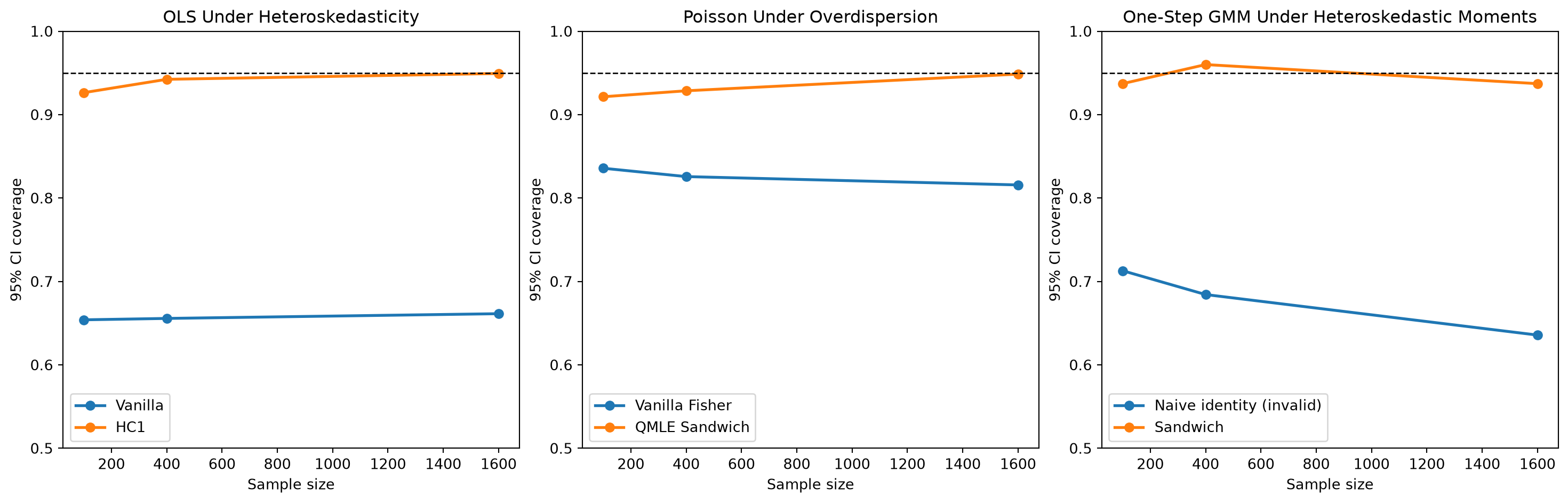

5 Coverage Plots

Show code

fig, axes = plt.subplots(1, 3, figsize=(15.2, 4.8), constrained_layout=True)
plot_coverages(axes[0], ols_results, "OLS Under Heteroskedasticity")
plot_coverages(axes[1], poisson_results, "Poisson Under Overdispersion")
plot_coverages(axes[2], gmm_results, "One-Step GMM Under Heteroskedastic Moments")
plt.show()

6 OLS: Vanilla Versus HC1

The linear model uses heteroskedastic Gaussian errors with variance increasing in the first regressor. The point estimate is ordinary least squares in both columns of the table. Only the covariance formula changes:

\[ \widehat{\mathrm{Var}}_{\text{vanilla}}(\hat\beta) = \hat\sigma^2 (X^\top X)^{-1}, \qquad \widehat{\mathrm{Var}}_{\text{HC1}}(\hat\beta) = \frac{n}{n-k} (X^\top X)^{-1} \left(\sum_{i=1}^n x_i x_i^\top \hat u_i^2\right) (X^\top X)^{-1}. \]

The ablation runs both columns through the actual cm.OLS interface via summary(vcov="vanilla") and summary(vcov="hc1").

Show code

display(
    HTML(
        html_table(
            ["Model", "Method", "n", "Mean Estimate", "Bias", "Empirical SD", "Mean SE", "Coverage", "Mean CI Length"],
            build_result_rows(ols_results, "OLS"),
        )
    )
)

Model	Method	n	Mean Estimate	Bias	Empirical SD	Mean SE	Coverage	Mean CI Length
OLS	Vanilla	100	0.9826	-0.0174	0.3730	0.1762	0.654	0.6906
OLS	HC1	100	0.9826	-0.0174	0.3730	0.3347	0.926	1.3122
OLS	Vanilla	400	0.9974	-0.0026	0.1897	0.0904	0.656	0.3543
OLS	HC1	400	0.9974	-0.0026	0.1897	0.1831	0.942	0.7178
OLS	Vanilla	1600	0.9973	-0.0027	0.0947	0.0454	0.661	0.1781
OLS	HC1	1600	0.9973	-0.0027	0.0947	0.0943	0.949	0.3698

7 Poisson: Vanilla Fisher Versus QMLE Sandwich

The conditional mean is correctly specified as (_i = (x_i^)), but the counts are generated from a Poisson-gamma mixture, so

\[ \mathbb{E}[Y_i \mid X_i] = \mu_i \]

still holds while

\[ \mathrm{Var}(Y_i \mid X_i) > \mu_i. \]

The Poisson point estimate remains a valid QMLE, but the Fisher-information covariance is no longer the right uncertainty measure. The sandwich estimator replaces the model-based variance with the outer product of score contributions. The ablation runs both columns through cm.Poisson.summary(vcov="vanilla") and cm.Poisson.summary(vcov="sandwich").

Show code

display(
    HTML(
        html_table(
            ["Model", "Method", "n", "Mean Estimate", "Bias", "Empirical SD", "Mean SE", "Coverage", "Mean CI Length"],
            build_result_rows(poisson_results, "Poisson"),
        )
    )
)

Model	Method	n	Mean Estimate	Bias	Empirical SD	Mean SE	Coverage	Mean CI Length
Poisson	Vanilla Fisher	100	0.4021	0.0021	0.1230	0.0875	0.836	0.3431
Poisson	QMLE Sandwich	100	0.4021	0.0021	0.1230	0.1125	0.921	0.4412
Poisson	Vanilla Fisher	400	0.3947	-0.0053	0.0613	0.0427	0.826	0.1675
Poisson	QMLE Sandwich	400	0.3947	-0.0053	0.0613	0.0586	0.929	0.2296
Poisson	Vanilla Fisher	1600	0.3989	-0.0011	0.0299	0.0213	0.816	0.0836
Poisson	QMLE Sandwich	1600	0.3989	-0.0011	0.0299	0.0299	0.949	0.1172

8 GMM: Vanilla Versus Sandwich In One-Step GMM

For GMM the difference only shows up if the weighting and covariance assumptions are not already aligned. This experiment therefore uses one-step identity-weighted GMM, not efficient two-step GMM. The moments are

\[ g_i(\beta) = z_i (y_i - x_i \beta), \]

with heteroskedastic structural shocks. The vanilla covariance uses

\[ \widehat{\mathrm{Var}}_{\text{vanilla}}(\hat\beta) = (G^\top W G)^{-1} / n, \]

while the sandwich covariance uses

\[ \widehat{\mathrm{Var}}_{\text{sandwich}}(\hat\beta) = (G^\top W G)^{-1} (G^\top W \hat\Omega W G) (G^\top W G)^{-1} / n. \]

The built-in cm.GMM.summary() exposes both columns directly.

Show code

display(
    HTML(
        html_table(
            ["Model", "Method", "n", "Mean Estimate", "Bias", "Empirical SD", "Mean SE", "Coverage", "Mean CI Length"],
            build_result_rows(gmm_results, "GMM"),
        )
    )
)

Model	Method	n	Mean Estimate	Bias	Empirical SD	Mean SE	Coverage	Mean CI Length
GMM	Vanilla	100	1.0071	0.0071	0.1787	0.0943	0.713	0.3695
GMM	Sandwich	100	1.0071	0.0071	0.1787	0.1702	0.937	0.6672
GMM	Vanilla	400	0.9982	-0.0018	0.0928	0.0470	0.684	0.1842
GMM	Sandwich	400	0.9982	-0.0018	0.0928	0.0914	0.960	0.3582
GMM	Vanilla	1600	0.9978	-0.0022	0.0505	0.0235	0.636	0.0922
GMM	Sandwich	1600	0.9978	-0.0022	0.0505	0.0472	0.937	0.1849

9 Takeaway

OLS under heteroskedasticity is the cleanest sanity check: the homoskedastic textbook covariance badly understates uncertainty, while HC1 tracks the empirical dispersion and restores coverage.
Poisson QMLE behaves the same way when the mean is right but the conditional variance is wrong: the point estimate is still fine, but inference needs the sandwich.
For GMM, the same lesson holds once the weighting matrix is not already the efficient one for the true moment covariance.
In practical terms, robust covariance estimators are not an embellishment here. They are the difference between a point estimator with usable intervals and one with systematically misleading uncertainty.
