First Course Ding: Chapter 1

Correlation, adjustment, and Simpson’s paradox

Chapter 1 mixes three related ideas:

raw association can move sharply after adjustment
contingency-table evidence can be summarized with simple callback-rate differences
Simpson’s paradox is a warning that pooled regressions can point in the wrong direction when group composition shifts

Show code

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import crabbymetrics as cm

np.set_printoptions(precision=4, suppress=True)


def repo_root():
    for candidate in [Path.cwd().resolve(), *Path.cwd().resolve().parents]:
        if (candidate / "ding_w_source").exists():
            return candidate
    raise FileNotFoundError("could not locate ding_w_source from the current working directory")


data_dir = repo_root() / "ding_w_source"

1 Lalonde Observational Data

The original notebook starts with the Lalonde-style CPS comparison. Here the point is simple: the treatment coefficient can move a long way once we control for observable differences.

Show code

cps = pd.read_table(data_dir / "cps1re74.csv", delimiter=" ")
y = cps["re78"].to_numpy(dtype=float)

naive = cm.OLS()
naive.fit(cps[["treat"]].to_numpy(dtype=float), y)

covariates = ["treat", "age", "educ", "black", "hispan", "married", "nodegree", "re74", "re75"]
adjusted = cm.OLS()
adjusted.fit(cps[covariates].to_numpy(dtype=float), y)

regression_table = pd.DataFrame(
    {
        "estimate": [
            naive.summary()["coef"][0],
            adjusted.summary()["coef"][0],
        ],
        "se_hc1": [
            naive.summary(vcov="hc1")["coef_se"][0],
            adjusted.summary(vcov="hc1")["coef_se"][0],
        ],
    },
    index=["Unadjusted", "Adjusted"],
)
regression_table

	estimate	se_hc1
Unadjusted	-8506.495361	581.926350
Adjusted	704.697035	616.730971

2 Callback Rates In The Resume Experiment

The Bertrand-Mullainathan resume data are a clean reminder that some causal contrasts are already visible in simple grouped means.

Show code

resume = pd.read_csv(data_dir / "resume.csv")

callback_rates = (
    resume.groupby(["race", "sex"], observed=False)["call"]
    .agg(["mean", "size"])
    .rename(columns={"mean": "callback_rate", "size": "n"})
)
callback_rates

		callback_rate	n
race	sex
black	female	0.066278	1886
black	male	0.058288	549
white	female	0.098925	1860
white	male	0.088696	575

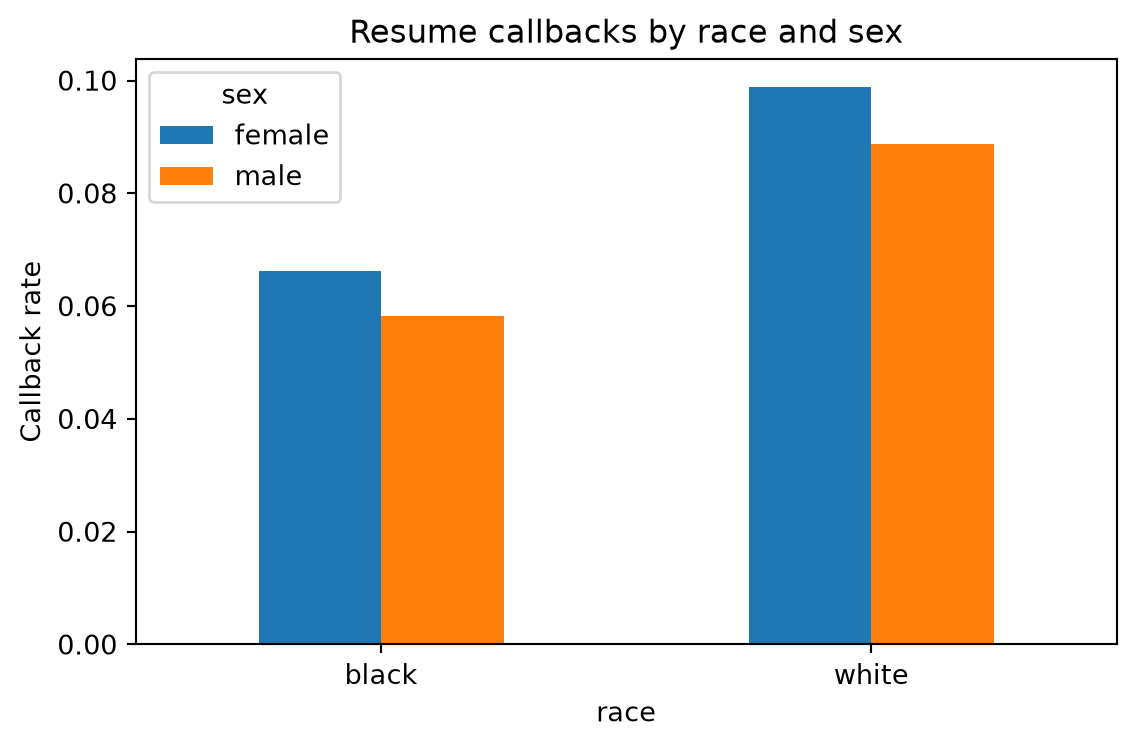

Show code

callback_plot = (
    resume.groupby(["race", "sex"], observed=False)["call"]
    .mean()
    .unstack("sex")
    .loc[["black", "white"]]
)

fig, ax = plt.subplots(figsize=(6, 4))
callback_plot.plot(kind="bar", ax=ax, rot=0)
ax.set_ylabel("Callback rate")
ax.set_title("Resume callbacks by race and sex")
fig.tight_layout()

3 Simpson’s Paradox In A Synthetic Example

Within each group below, the relationship between \(x\) and \(y\) is positive. Pooled together, it becomes negative because the high-\(x\) group also has a much lower intercept.

Show code

rng = np.random.default_rng(1)
n_group = 160
group = np.repeat([0.0, 1.0], n_group)
x = np.r_[rng.normal(-1.0, 0.6, n_group), rng.normal(2.5, 0.6, n_group)]
y = np.r_[
    3.5 + 0.9 * x[:n_group] + rng.normal(0.0, 0.35, n_group),
    -2.5 + 0.9 * x[n_group:] + rng.normal(0.0, 0.35, n_group),
]

pooled = cm.OLS()
pooled.fit(x[:, None], y)

adjusted_simpson = cm.OLS()
adjusted_simpson.fit(np.column_stack([x, group]), y)

simpson_table = pd.DataFrame(
    {
        "slope_on_x": [
            pooled.summary()["coef"][0],
            adjusted_simpson.summary()["coef"][0],
        ]
    },
    index=["Pooled", "Adjusted for group"],
)
simpson_table

	slope_on_x
Pooled	-0.665827
Adjusted for group	0.893378

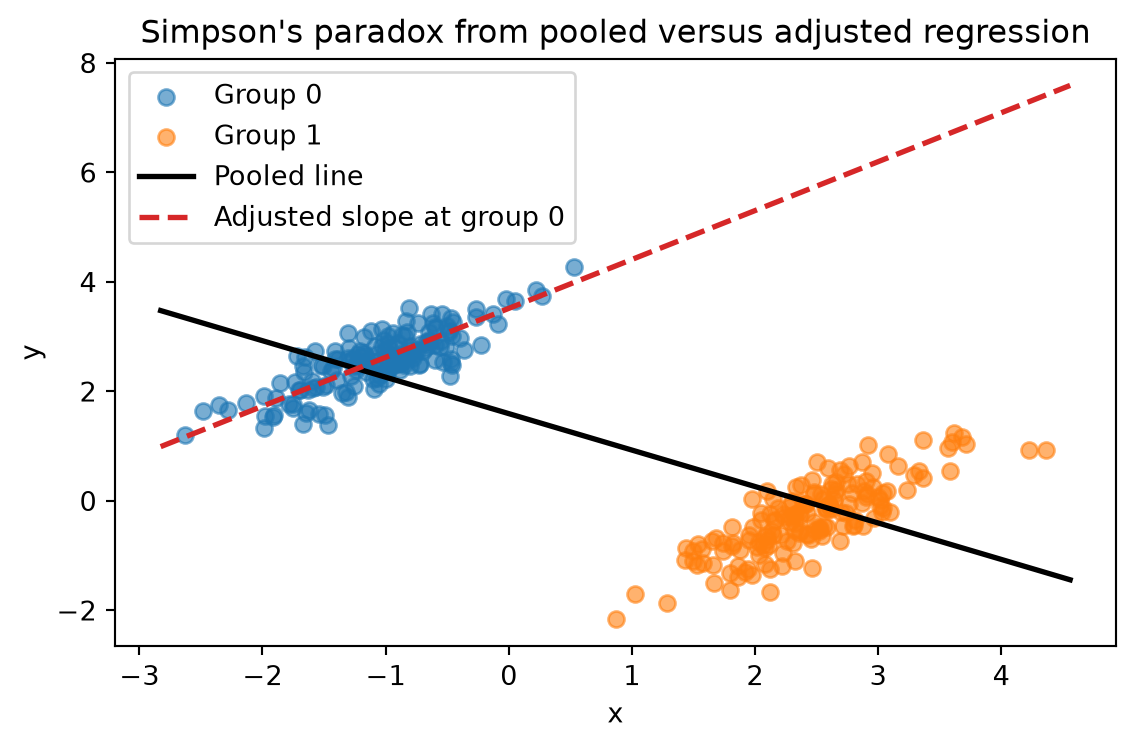

Show code

grid = np.linspace(x.min() - 0.2, x.max() + 0.2, 100)
pooled_summary = pooled.summary()
adj_summary = adjusted_simpson.summary()

fig, ax = plt.subplots(figsize=(6, 4))
ax.scatter(x[group == 0.0], y[group == 0.0], alpha=0.6, label="Group 0")
ax.scatter(x[group == 1.0], y[group == 1.0], alpha=0.6, label="Group 1")
ax.plot(
    grid,
    pooled_summary["intercept"] + pooled_summary["coef"][0] * grid,
    color="black",
    linewidth=2.0,
    label="Pooled line",
)
ax.plot(
    grid,
    adj_summary["intercept"] + adj_summary["coef"][0] * grid,
    color="tab:red",
    linewidth=2.0,
    linestyle="--",
    label="Adjusted slope at group 0",
)
ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_title("Simpson's paradox from pooled versus adjusted regression")
ax.legend()
fig.tight_layout()

4 Takeaway

Chapter 1 is mostly about interpretation discipline. crabbymetrics.OLS is enough to reproduce the main lesson: raw differences, adjusted differences, and grouped summaries answer different questions even when they use the same underlying observations.
